We are the largest manufacturer and supplier of Extrusion Coating Lamination Plants based in Ahmedabad, India. With years of expertise in the industry, we specialize in providing high-quality machinery for various coating and lamination applications. Our plants are designed for efficiency, durability, and precision, ensuring optimal performance. We serve a wide range of industries, offering tailored solutions to meet specific production needs. As a trusted name in the field, we are committed to delivering cutting-edge technology and exceptional customer service

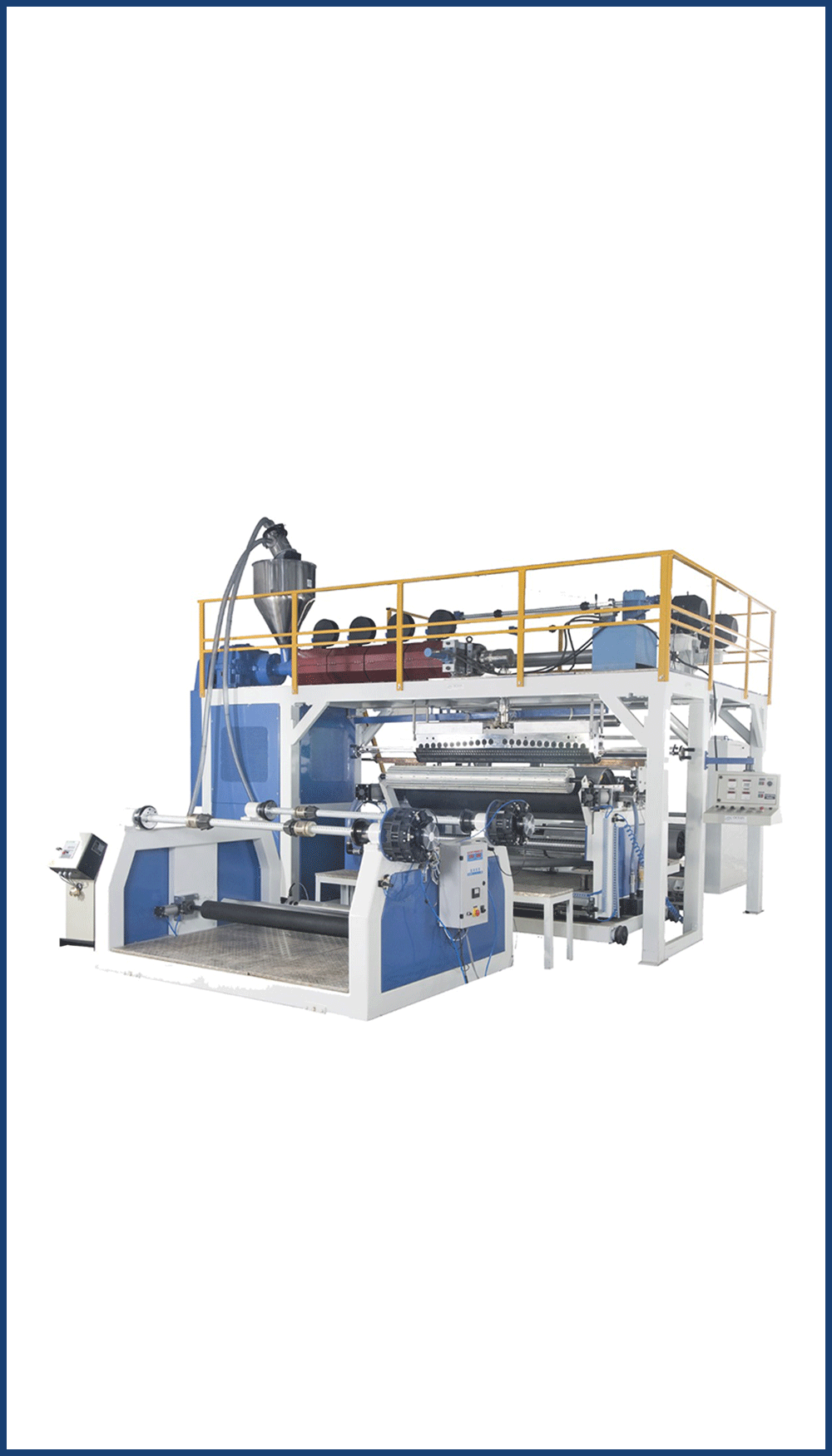

An Extrusion Coating Lamination Plant is also commonly known as Extrusion Lamination Plant or Extrusion Coating Line. It is a specialized manufacturing system used to apply a coating or laminate layer of molten polymer onto a substrate material, such as paper, cardboard, or plastic films. This process is primarily used in industries such as packaging, printing, and food processing. In addition to coating, the plant can laminate multiple layers, often used to combine different materials (like plastic and paper) to create a composite material with desirable characteristics, such as improved barrier properties or aesthetics.
| Model | SCM-BPL-1800 |
|---|---|
| Material To Be Processed | LDPE / PP / PLA |
| Screw Dia | 90 mm |
| Barrel Feed Type | Smooth Feed |
| L D Ratio | 30:1 |
| Maximum Coating Width | 1650mm |
| Filter Type | Screen Changer |
| Die | T – Die |
| Coating Thickness Range | 12 to 120 micron |
| Maximum Coating Output | 120 Kg/Hr |
| Winder | Two Station Surface Re-winder |
| Machine Connected Load | 96KW (129 HP) |
| Dimensions (L x w x h) Approx. In Feet | 40 x 28 x 15 Feet |
An Extrusion Coating Lamination Plant is a machine used to coat and laminate substrates like paper, foil, or film with molten plastic (such as LDPE, HDPE, or PP) to enhance strength, moisture resistance, and durability.
The plant can process a wide range of materials including kraft paper, aluminum foil, BOPP film, polyester film, and woven/non-woven fabrics, combined with polymers like LDPE, HDPE, and EVA.
It is widely used in packaging industries for products like food packaging, liquid packaging cartons, flexible packaging, pharmaceutical packaging, and industrial wrapping materials.
Modern extrusion coating lamination plants are designed to be energy-efficient and often come with fully automatic or semi-automatic controls, ensuring consistent quality and reduced manual intervention.
Key factors include extrusion temperature, coating thickness, line speed, cooling system efficiency, and proper adhesion between substrate and coating material. Regular maintenance and proper settings are essential for optimal results.
