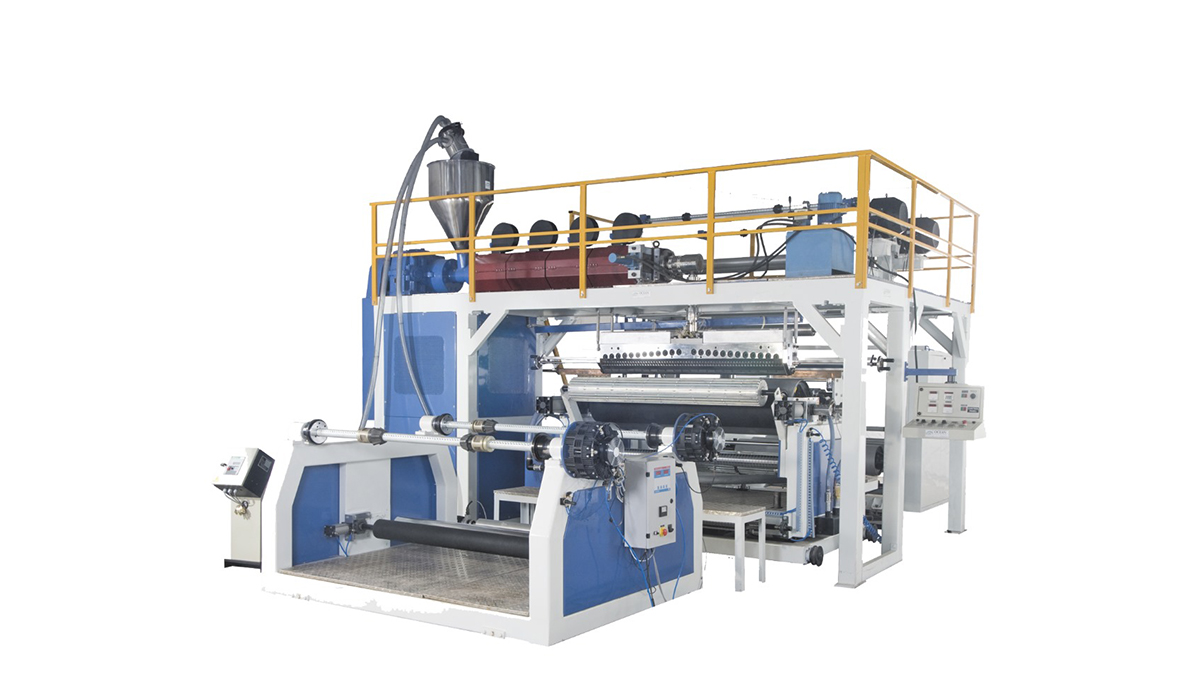

A Non-Woven Coating Lamination Machine is a specialized industrial machine used for applying coatings or laminates onto non-woven fabrics. These machines are primarily used in the textile, medical, packaging, and hygiene industries to enhance the properties of non-woven materials. The machine combines two processes: coating and lamination.
Coating: Coating is the process of applying a thin layer of material (such as a polymer, adhesive, or chemical coating) onto the surface of the non-woven fabric. The coating is applied to provide benefits such as:
Lamination: Lamination involves bonding one or more layers of material (such as plastic films or other fabrics) to the non-woven fabric using heat, pressure, or adhesives. The purpose of lamination is to:
| Specification | Details |
|---|---|
| Production Capacity | 50 - 300 (kg/hr) |
| Machine Type | Fully Automatic |
| Coating Type | Hot Melt, Solvent-based, Water-based |
| Working Width | 600 - 2000 mm |
| Voltage | 380V / 50Hz |
| Power Consumption | 15 - 40 kW |
| Material Thickness | 30 - 300 GSM |
| Roll Diameter | Max 1000 mm |
| Temperature Control | Digital, Automatic |
| Speed | 10 - 50 meters/min |
| Control System | PLC & HMI |
| Country of Origin | Made in India |
| Warranty | 1 Year |
