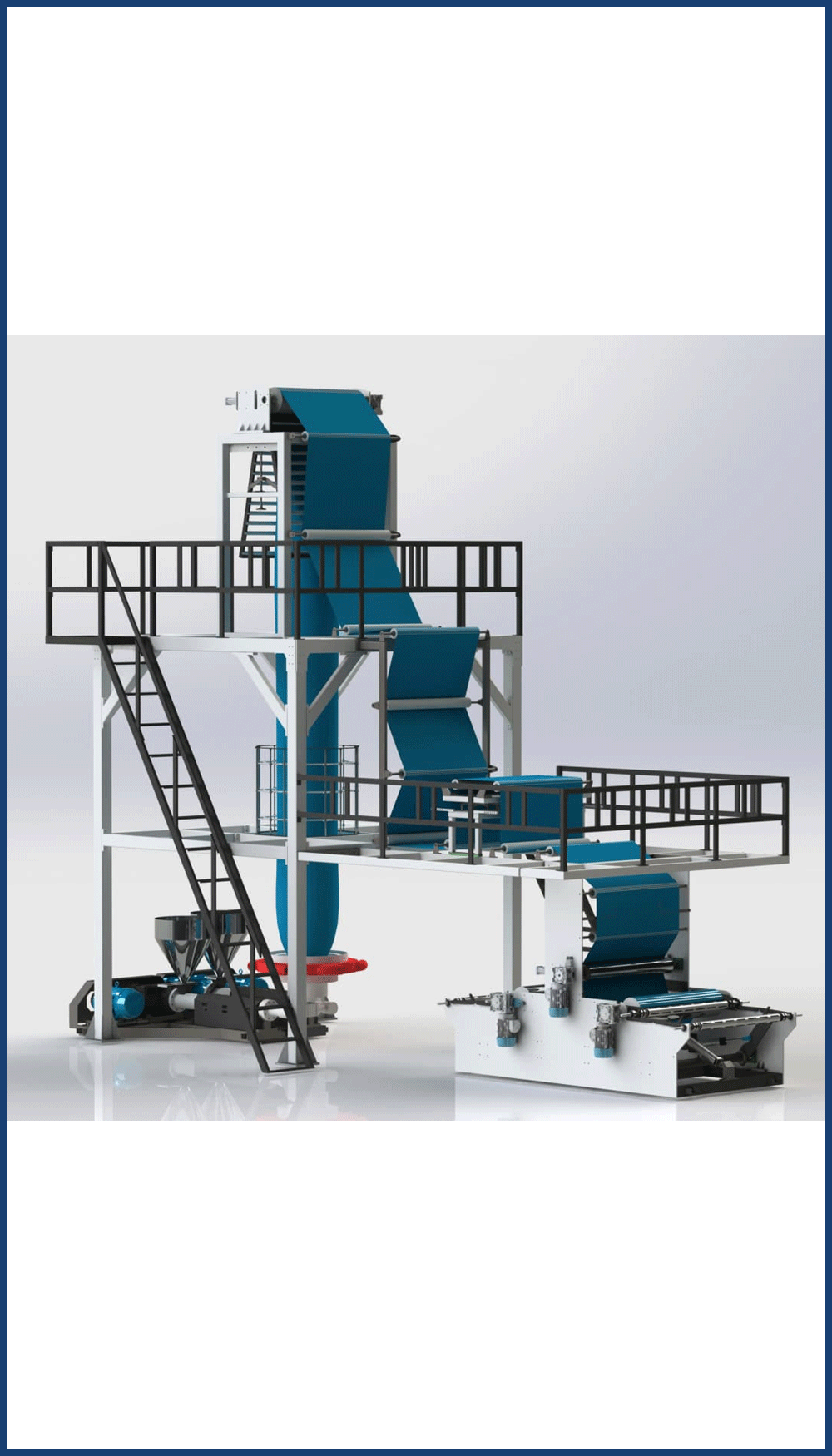

Two Layer Blown Film Plant Manufacturer

We are India's Largest manufacturer, supplier and exporter of Two Layer Blown Film Plant in India. A Two Layer Blown Film Plant is also known as a Two Layer Film Extrusion Plant. This plant is used for manufacturing two-layered plastic films through the blown film extrusion process. It typically combines two different types of polymers to create films with varied properties, such as enhanced strength, barrier properties, or cost efficiency.

A Two-Layer Blown Film Plant is an extrusion system designed to produce blown films with two distinct layers using two different polymer materials or variations of the same material. This process combines the advantages of both layers to produce films with improved properties, such as enhanced strength, barrier performance, and flexibility. The two-layer design is achieved by using two extruders—one for each layer—where the polymer melt from each extruder is simultaneously formed into a bubble and then combined to form the final film.

Advantages of Two Layer Blown Film Plant

  • By combining two different polymers, it can help reduce material costs while still achieving the desired properties in the final film.
  • It allows for the creation of films with a combination of different characteristics, such as improved strength, flexibility, or barrier properties (e.g., moisture or gas resistance).
  • The ability to blend two materials enables customization for specific applications, such as food packaging, agricultural films, or industrial uses.
  • Two-layer films tend to have better mechanical strength and resistance compared to single-layer films, which improves durability and performance.
  • The two-layer process can reduce material waste by optimizing the use of different polymers, contributing to more sustainable production.

Specification

Model CM-AB-35-45 CM-AB-45-55 CM-AB-55-65
Material To Be Processed HM, LD,PBAT-BIO,HDPE 45mm – 55mm 55mm – 65mm
Barrel Feed Type Groove Feed Groove Feed Groove Feed
L D Ratio 30:1 30:1 30:1
Film Thickness Range 20 to 100 micron 20 to 120 micron 20 to 120 micron
Die AB Die AB Die AB Die
Filter Type Candle Filter /Screen Changer Candle Filter /Screen Changer Candle Filter /Screen Changer
Lay Flat Film Width Range 250 to 800 mm 300 to 1000 mm 400 to 1300 mm
Maximum Output 70 Kg/Hr 90 Kg/Hr 120 Kg/Hr
Winder Single Station Surface Winder Single Station Surface Winder Double Station Surface Winder
Machine Connected Load 52 KW (69 HP) 64 KW (85 HP) 98 KW (85 HP)
Dimensions(L x w x h ) Approx. In Feet 10 x 10 x 18 Feet 12 x 12 x 20 Feet 25 x 12 x 22 Feet
Optional Attachment Rotating Haul Off Unit Rotating Haul Off Unit Rotating Haul Off Unit
LDPE, LLDPE Attachment LDPE, LLDPE Attachment HM, HDPE Attachment
Double Station Winder Double Station Winder
